OEM & ODM

OEM Filter Service For All Your Industry Needs

We provide comprehensive OEM and ODM filtration solutions for industrial applications, specializing in high-performance filter cartridges for gas, hydraulic oil, air and process filtration systems. Our products are widely used in petrochemicals, transportation, power plants fields.
With advanced manufacturing capabilities and deep industry expertise, we support global partners with custom-engineered filtration products that meet exact performance, dimensional, and operational requirements.

Our OEM Capabilities

We manufacture replacement and equivalent filter cartridges compatible with leading brands such as Parker Hannifin, Pall Corporation, PECO, Velcon, Facet filtration, Kaydon and Jonell Systems.

Key OEM Services:

  • Cross-reference production based on part numbers or samples
  • Equivalent replacement for gas filter separator cartridges
  • Hydraulic oil filter cartridge manufacturing
  • Material substitution & performance optimization
  • Private labeling and neutral packaging

Our ODM Capabilities

From concept to production, we deliver fully customized filtration solutions tailored to your application.

ODM Services:

  • Custom filter design (size, structure, micron rating)
  • Media selection (Fiberglass, Microglass, Cellulose, Synthetic, Stainless Steel, Coalescing Media, Activated Carbon)
  • High-temperature and high-pressure filtration solutions
  • Special coatings and corrosion-resistant materials
  • Prototype development and performance testing

Industrial Filter Core

Filter Media, Support Frame, End Caps, Connections, Seals — Five Core Modules to Enable Fast Customization and Enhance Equipment Stability.

Key Parameters

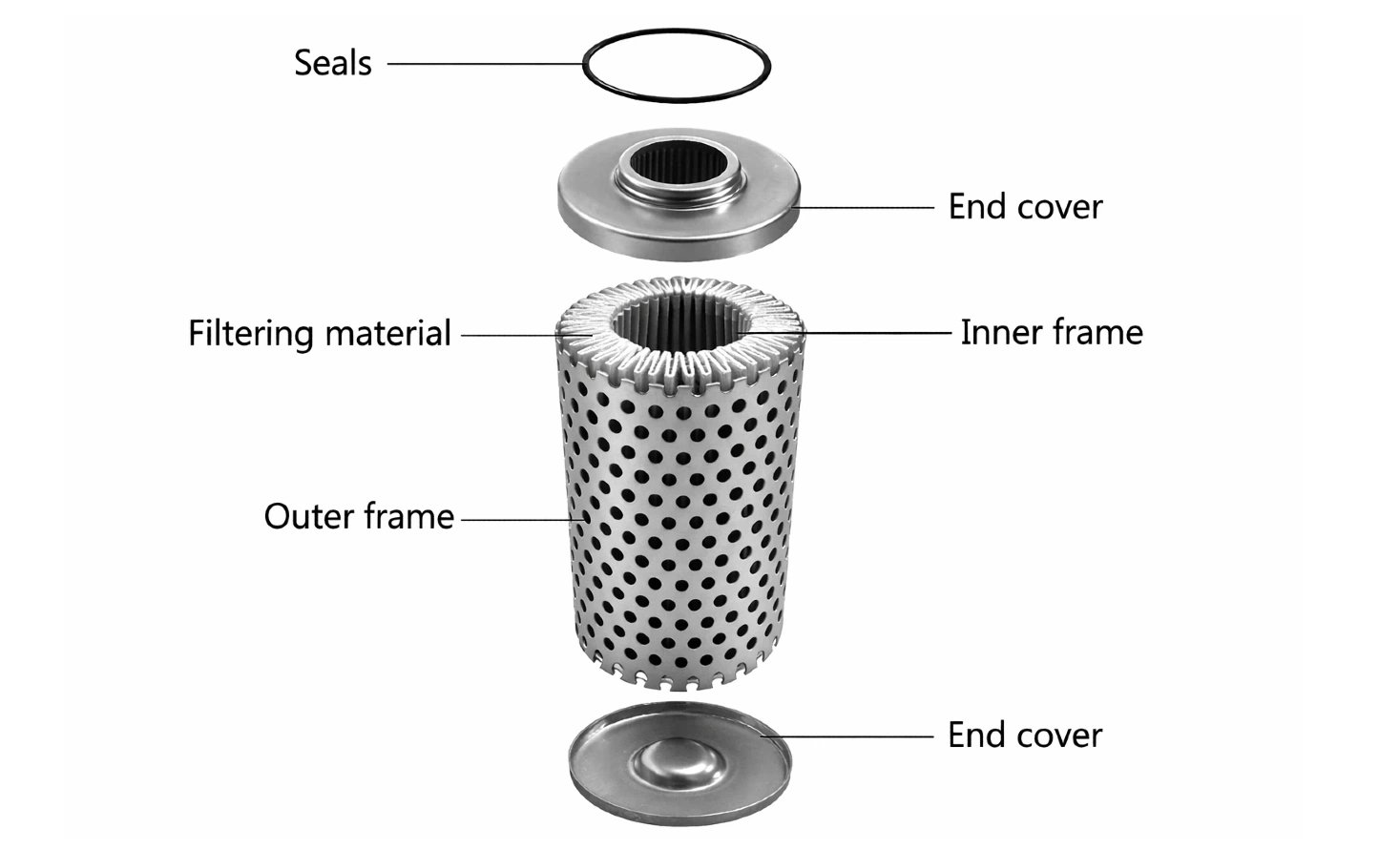

Filter key parameters diagram
Outer frame30~400 mm Inner frame10~200 mm Height50~1500 mm FR1~200 μm Pressure≤42 MPa
Quick Match by Providing Drawings / Samples / Model Numbers
Filter Media / Skeleton / End Cover / Connection / Sealing Ring

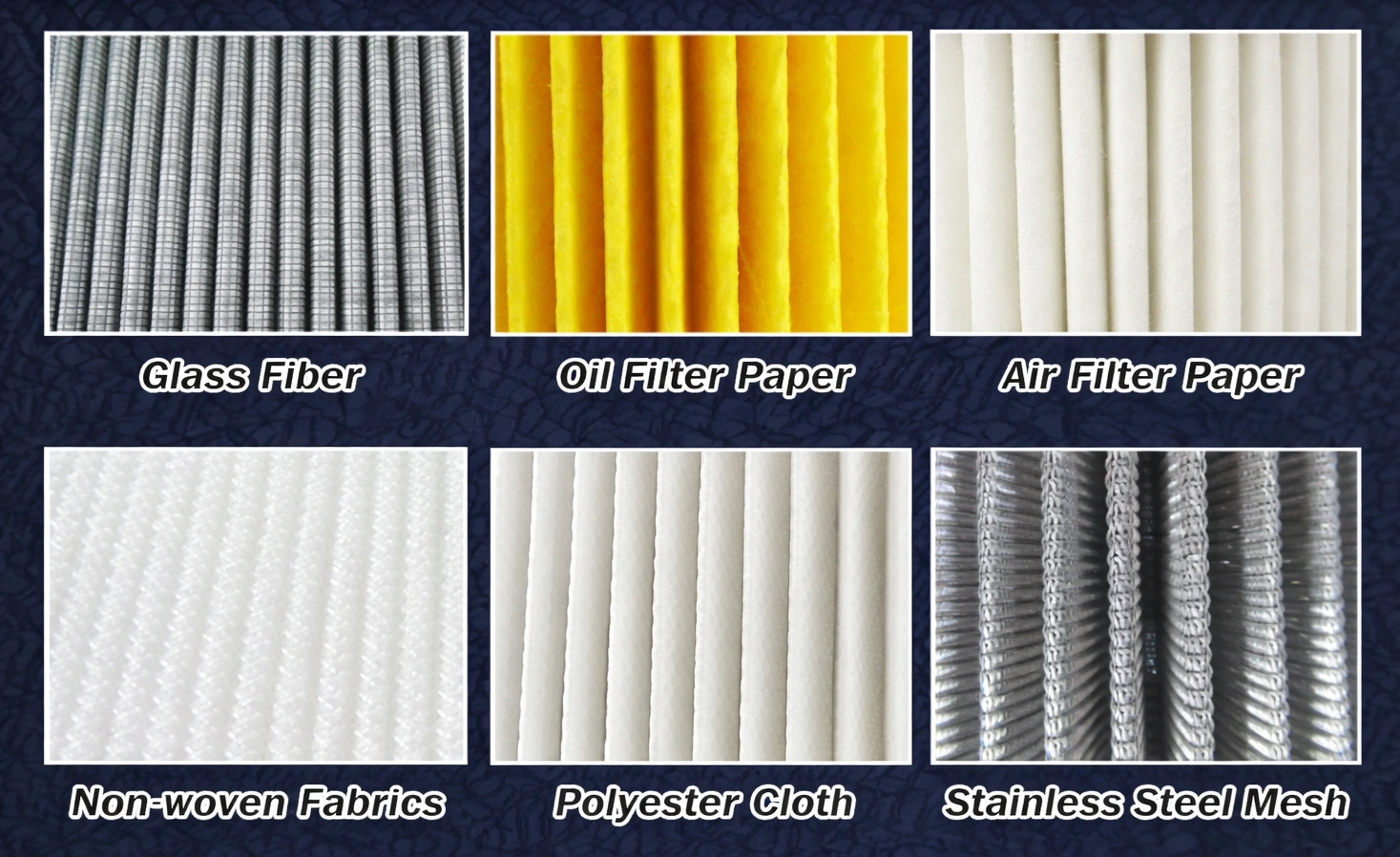

Filter Media

Filter media types
Glass Fiber Oil Filter Paper Air Filter Paper Non-woven Fabrics Polyester Cloth Stainless Steel Mesh
✔ Fiberglass: High precision for hydraulic oil, large dirt-holding capacity.
✔ Metal mesh: High temperature resistance, corrosion resistance, cleanable.
  • Filtration range 1–25μm · Stable pressure drop
  • Reusable/disposable · Suitable for multiple industries

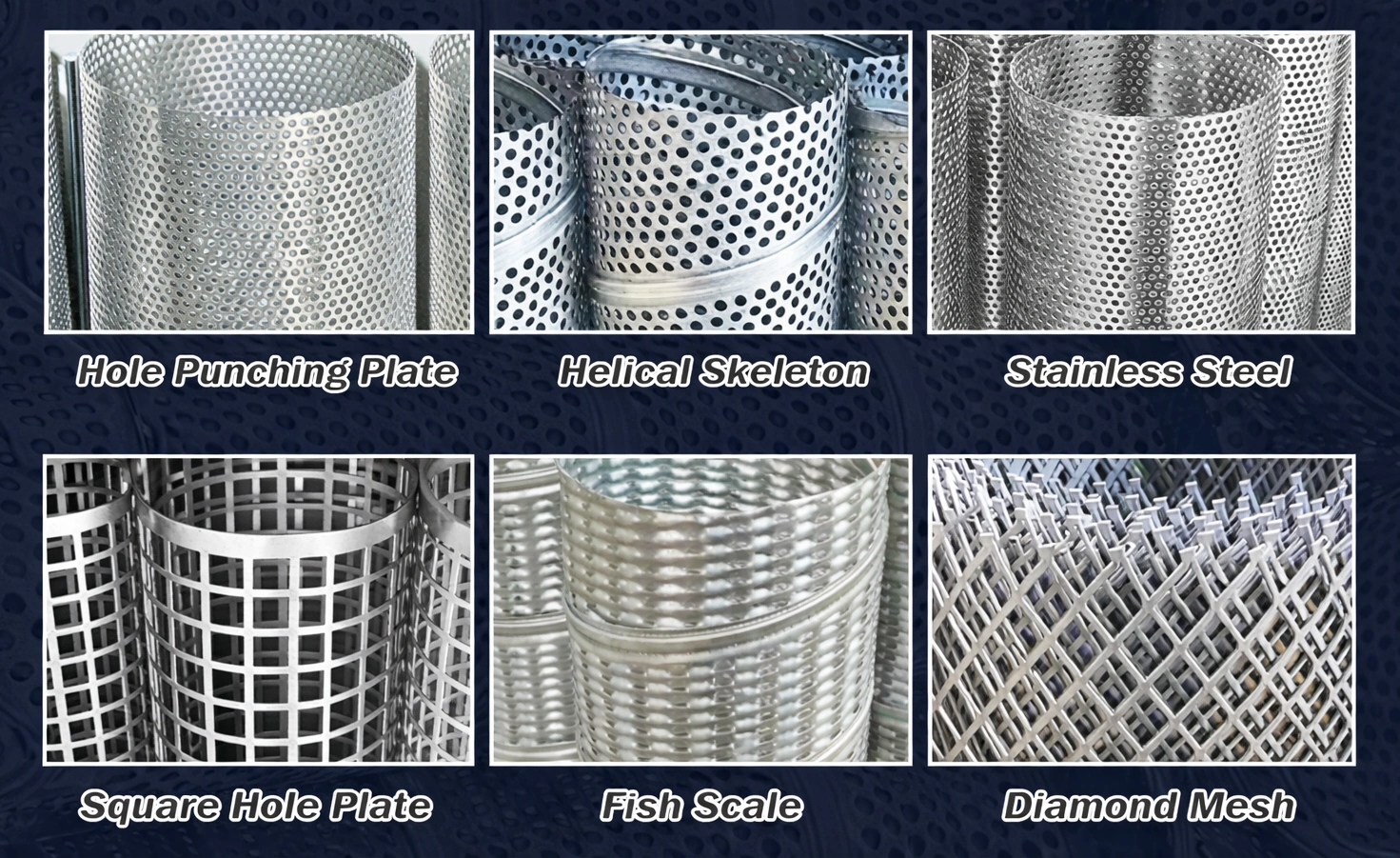

Skeleton

Filter skeleton types
Hole Punching Plate Helical Skeleton Stainless Steel Square Hole Plate Fish Scale Diamond Mesh
✔ Carbon steel: Common in general industry, high strength and cost-effective.
✔ Stainless steel: Chemical/Marine/Corrosion resistant
  • Round hole plate · Diamond mesh · Helical skeleton
  • Hole patterns customizable based on flow rate / pressure drop.

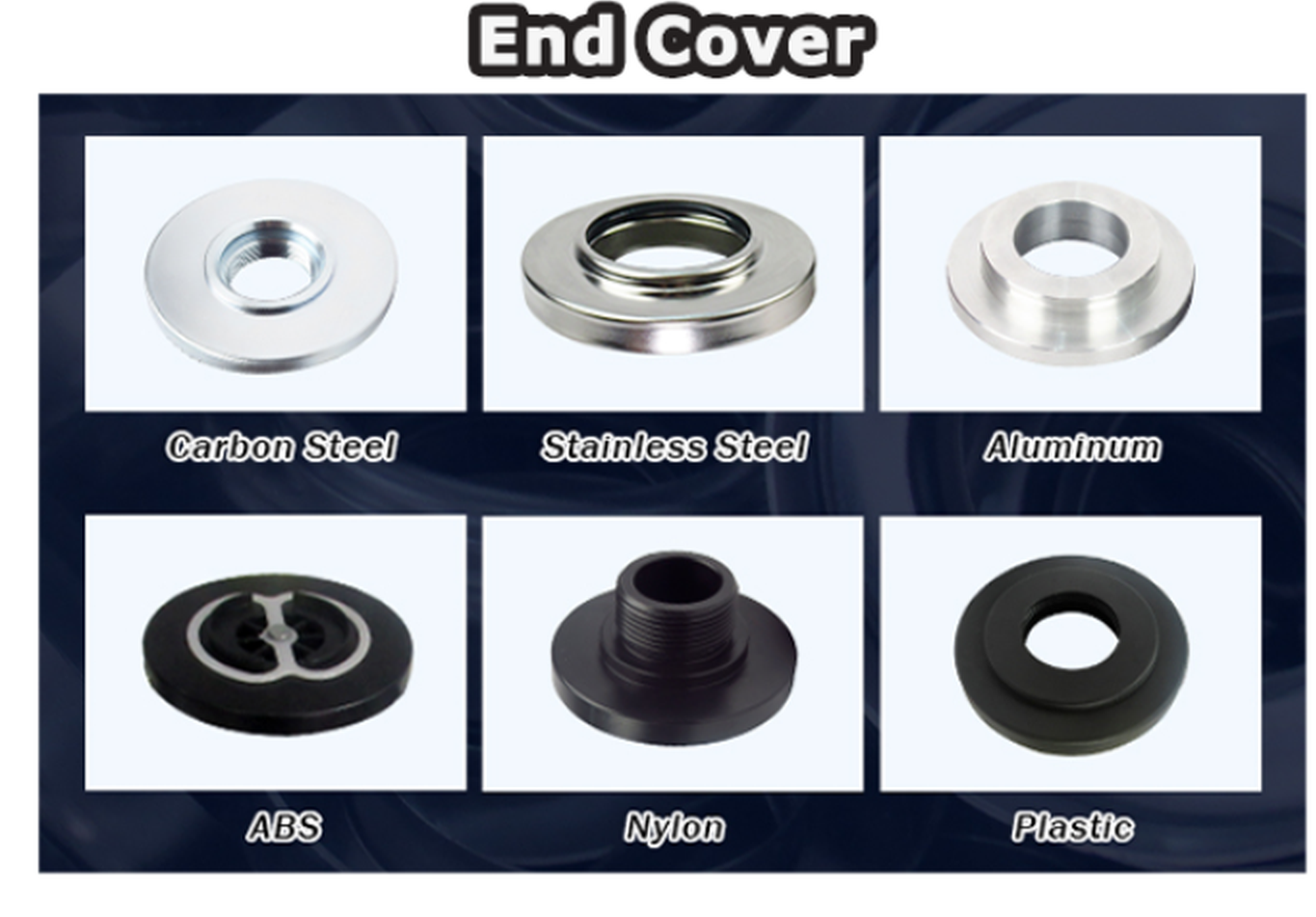

End Cover

End cover materials
Carbon Steel Stainless Steel Aluminum ABS Nylon Plastic
✔ Metal: High-pressure / high-temperature environments
✔ Plastic: Lightweight / Corrosion-resistant / Cost-sensitive
  • Material selection based on working pressure / corrosion environment.

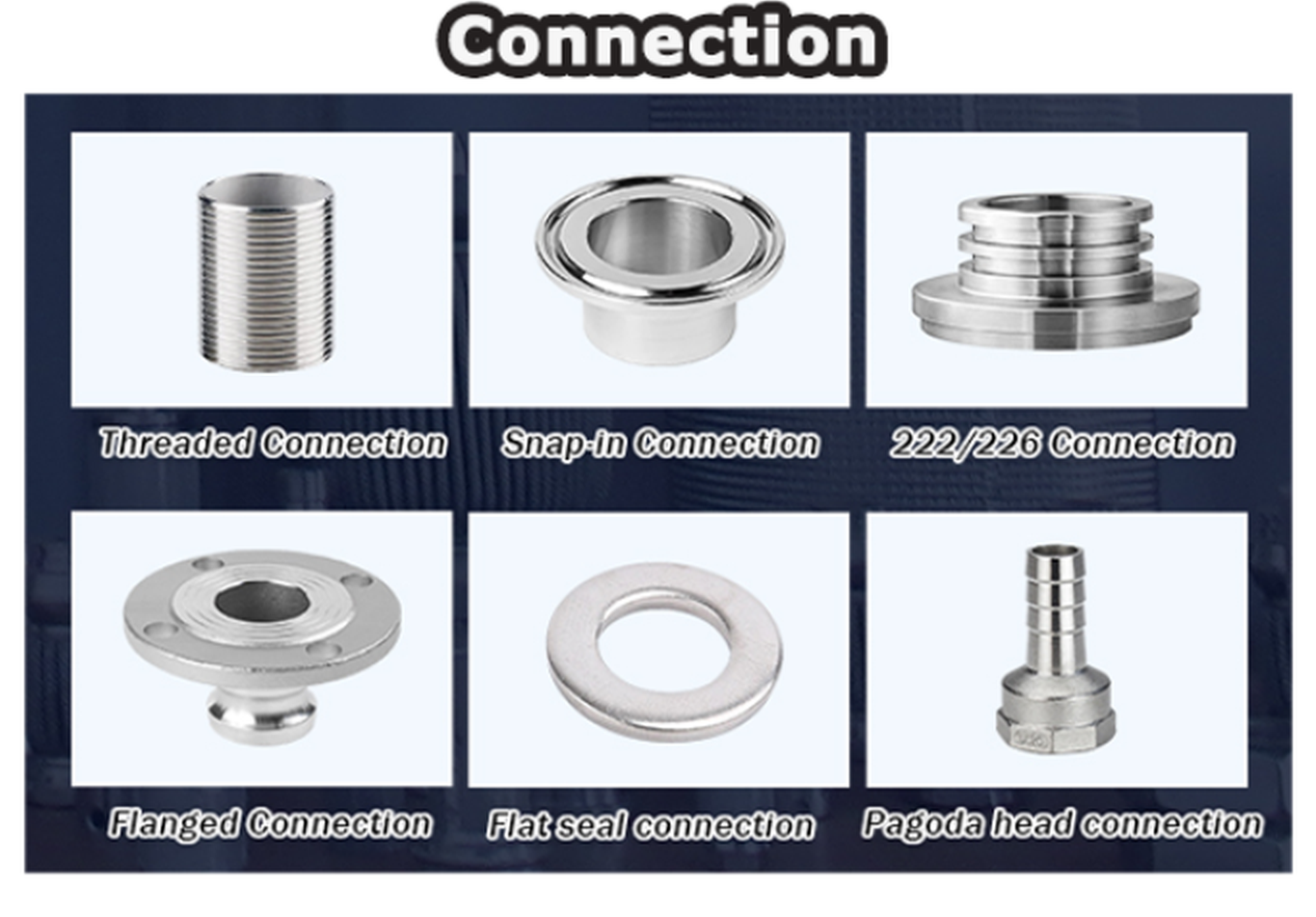

Connection

Filter connection types
Threaded Snap-in 222/226 Flanged Flat seal Pagoda head
✔ Fully interchangeable with major brand interfaces.
✔ Flat seal, standard connection.
  • Custom OEM specifications · No piping modifications required.

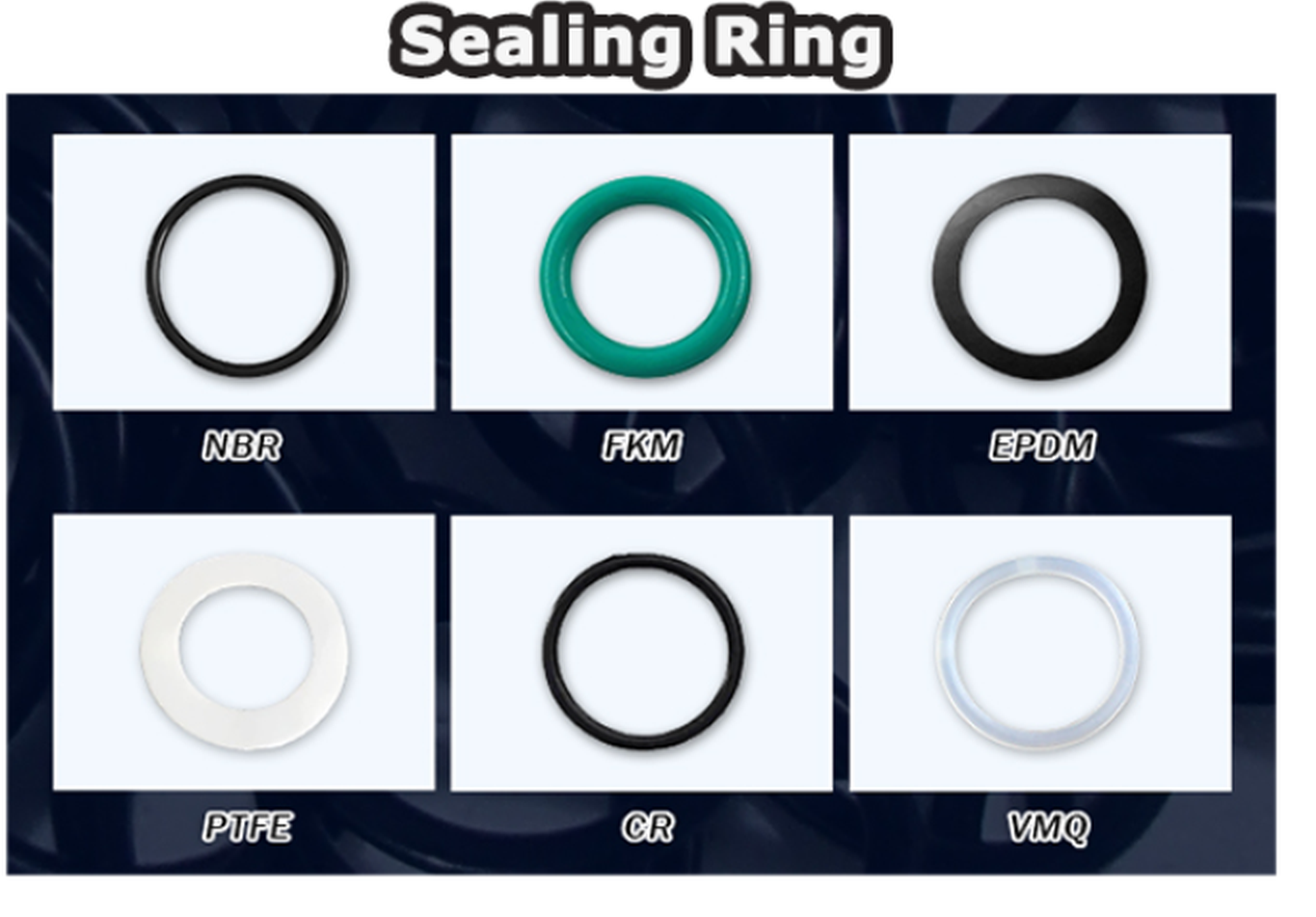

Sealing Ring

Sealing ring materials
NBR FKM EPDM PTFE CR VMQ
✔ NBR: Oil-resistant, economical; FKM: Withstands chemicals up to 200°C.
✔ PTFE: Highly corrosion-resistant; VMQ: Wide temperature range.
  • Precise matching based on medium / temperature.

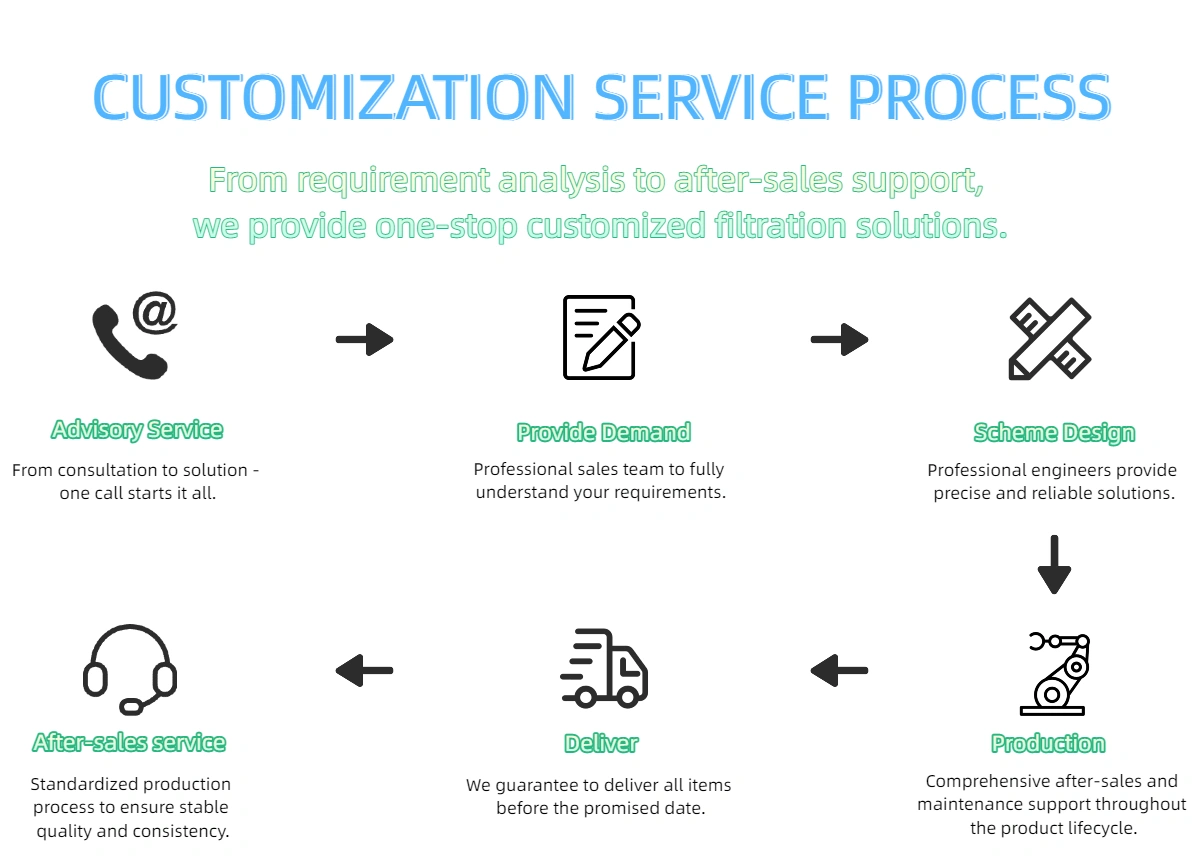

OEM ODM filtration manufacturing process
