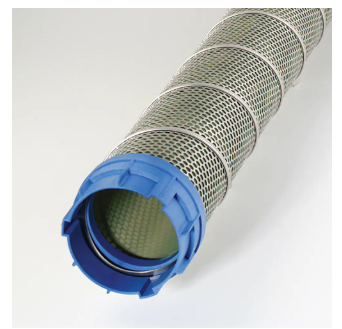

Replacement Velcon SI Series SI-522E Canister Separator Cartridge

OD Standard inch

Height Standard inch

End caps Open-End with Bayonet Mount

Filter layer Teflon Coated Screen, Synthetic or Pleated Paper Media;200-mesh PTFE-coated stainless steel screen

Filtration rate 140 Micron μm

Working temperature 250 °F（121.1 ºC）

Skeleton Non-Stick Coated stainless steel

Send Email WhatsApp

Product Details

Learn more about the specifications, features and benefits of our high-performance filter element.

Description

Meitong Replacement Velcon SI Series Canister Separator Cartridges are specially designed separator elements for military and high-performance aviation fuel filtration systems.

The SI Series features a canister-style separator design with PTFE-coated hydrophobic screen technology. It is installed around first-stage coalescer elements in military filter/separator vessels to provide additional protection against water contamination.

The separator canister repels water droplets while allowing clean aviation fuel to pass through. Separated water collects at the bottom of the vessel and is removed through the drainage system.

Application:

Military aircraft fueling systems

Military refueler trucks

Tactical field fueling units

Defense fuel storage facilities

JP-8 fuel filtration systems

Military refueling vehicles

Tactical aviation fuel equipment

Compatible Equipment: DOD filter separator vessels

Specifications

Parameter	Specification
Outer Diameter	Standard
Inner Diameter	Standard
Height	Standard
Filter material	Teflon Coated Screen, Synthetic or Pleated Paper Media
End caps	Open-End with Bayonet Mount
Hardware Material	Non-Stick Coated stainless steel
Temperature	250 °F（121.1 ºC）
Maximum Differential Pressure	15 psid
Filtration Accuracy	140μm

If you are interested in this filter, please contact us to get the price.

Features

Bayonet Mount with Wavy Spring: Features a positive bayonet locking mechanism and heavy-duty wavy spring that withstands severe vibration, pressure surges, and high flow velocity without risking bypass leakage.

Annular Coalescing-Separation Zone: Fluid exiting the inner coalescer enters the narrow annular gap between the coalescer OD and SI canister ID, accelerating water droplet growth and rapid gravity settling.

Severe Duty Media: Internal 200-mesh PTFE-coated stainless steel screen (140 Micron nominal), fully qualified to EI 1581 6th Edition Category M & M100 for fuels containing anti-icing additives (Di-EGME / JP-8 / F-34).

Canister type aviation fuel separator.

Designed for military aviation fuel systems.

PTFE coated 200 mesh screen technology.

Excellent water rejection performance.

High mechanical strength.

Qualified for EI 1581 Category M and M100 applications.

Reliable performance with JP-8 aviation fuel.

Model Number

Moder Number
SI-422A*	SI-443*	SI-522	SI-522E	SI-542
